DCC Sniffer

Dotric DCC Sniffer is a Windows application that is intended to be connected to an NCE DCC Packet Analyzer to view the DCC codes actually being sent to locomotives on a model railway layout running DCC.

Since Dotric DCC Sniffer is intended primarily for use with Dotric Station Blue systems, it does not display NCE Cab Bus activity. It can however be used to display track activity for any NMRA compliant DCC system.

The advantages of using Dotric DCC Sniffer include:

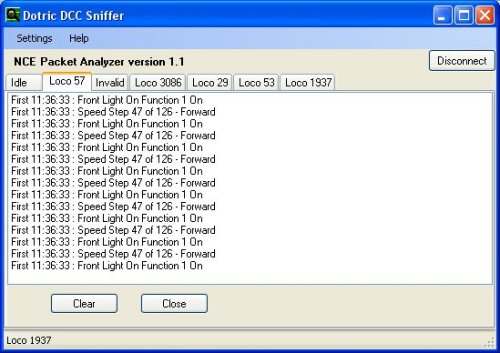

  • DCC messages are displayed in human readable form
  • Messages sent to individual locomotives are displayed on separate tab pages
  • Program mode messages are displayed on a separate tab page
  • A high performance serial port interface is used to provide a responsive user interface

Installation Instructions

Dotric DCC Sniffer may be downloaded from this website free of charge. Dotric DCC Sniffer will perform best on a computer running Windows XP or better. It may run on Windows 98 machines once the .NET framework has been installed.

To install Dotric DCC Sniffer on this computer now click here, press Run in the first dialog box that appears and follow the instructions in the subsequent windows.

To install Dotric DCC Sniffer subsequently on this or another computer click here and press Save in the first dialog that appears. The saved Dotric Installer.exe file may be copied to another computer and used to install Dotric DCC Sniffer on that computer with no internet connection being required on that computer. To install Dotric DCC Sniffer using the Dotric Installer.exe file simply double click on the file icon.

NOTES
  1. During the course of the installation some security warnings may appear. It is of course necessary to let the installation proceed if you want to install Dotric DCC Sniffer
  2. If you wish to remove Dotric DCC Sniffer from your computer in the future, you must use Add or Remove Programs in the Windows Control Panel.

Post Installation

Use Dotric DCC Sniffer online help for information on how to connect up the NCE DCC Packet Analyzer. To access Dotric DCC Sniffer online help select Help then Help With DCC Sniffer from the Dotric DCC Sniffer main menu. In particular, do not use the JP1/JP2 jumpers. Use an external power supply instead.
